introduction
An audio mixer is an essential component of any professional audio system, whether for mosques, theaters, conference halls, or even studios and live broadcasts. A mixer helps combine different audio sources , adjust levels, and improve sound quality before directing it to speakers or recording equipment.
In this guide, we'll learn how to properly install the mixer, connect various devices to it, and adjust settings for the best possible audio performance.
Tools and equipment required
Before you begin installation, make sure you have the following tools and equipment:
✅ Audio mixer (Analog or digital as needed)
✅ XLR, TRS and RCA cables depending on the type of connections
✅ Microphones (wired or wireless)
✅ Amplifier if you are using headphones that are not built into the amplifier
✅ External speakers
✅ Additional audio source (computer, music player, or other devices)
✅ Stable power unit to protect devices

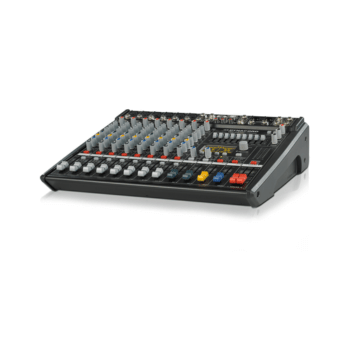

Dynacord German 2-channel 2000W 6-line microphone mixer
Steps to install the sound mixer
1️⃣ Choosing a suitable location for the crusher
🔹 Place the crusher in a safe and stable place, away from sources of heat or moisture.
🔹 Make sure all connections and ports are easily accessible.
🔹 In mosques or halls, it is preferable to place it in a control room or on a fixed table.
2️⃣ Connect the mixer to the sound sources.
🔹 Connect microphones to the dedicated inputs (XLR Inputs).
🔹 If you are using audio sources such as a computer or music player , connect them via the Line In ports using TRS or RCA cables.
🔹 If there are musical instruments, use the appropriate inputs such as Line Inputs or DI Box .
3️⃣ Connect the mixer to the amplifier or speakers.
🔹 If you are using active speakers , connect them directly to the main outputs (Main Out or Master Out) using XLR or TRS cables.
🔹 If you are using passive speakers , you will need to first connect the mixer to an amplifier via the mixer's Main Outputs , and then connect the amplifier to the speakers.
🔹 Make sure to adjust the volume on the mixer before turning on the system to avoid any problems.
4️⃣ Connecting the monitor speakers
🔹 If you need monitoring speakers, connect them via the Monitor Out or Aux Out ports.
🔹 Use these outputs to adjust volume levels separately for performers or sound engineers.
5️⃣ Adjust basic settings
🔹 Gain & Trim: Adjust the input level for each channel to avoid distortion or weak sound.
🔹 Equalizer (EQ): Use the equalizer to adjust the high, mid, and low frequencies for a balanced sound.
🔹 Pan Control: Allows you to distribute the audio between the left and right channels as needed.
🔹 FX & Reverb: If your mixer has audio effects, you can adjust the level of reverb or other effects as needed.
6️⃣ Test and verify sound quality
🔹 Turn on microphones and other audio sources, and test the volume levels.
🔹 Make sure there is no distortion or interruption in the sound.
🔹 Adjust the settings until you get clear, balanced sound.

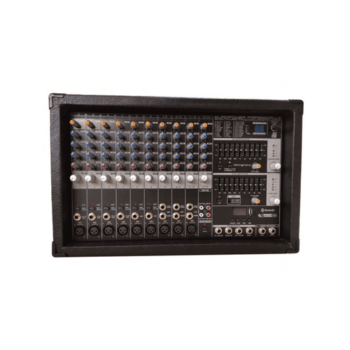

Behringer PMP2000 - 800W Portable Mixer with Multi-Effects Processor
Tips for tuning your mixer perfectly
✅ Use the Sound Check before any event to fine-tune levels.
✅ Do not increase the gain too much, as this may result in distortion or sound saturation.
✅ Use the Equalizer (EQ) to improve sound quality and remove any unwanted noise.
✅ If you are using a mosque loudspeaker , make sure to adjust the sound so that it is clear without annoying echo.
✅ Save your favorite settings in the digital mixer (if supported) for easy future setups.
conclusion
The mixer is one of the most important components in any professional audio system, allowing you complete control over sound quality and efficient management. By following the steps above, you can properly install and adjust your mixer for the best possible audio performance.
